Axial-flow fans

The DUCT-M HT and RING HT series fans are designed for smoke extraction in the event of fire in environments such as car parks, shopping centres, hospitals, schools, theatres, and museums. Certified according to the EN 12101-3 standard, they operate in continuous duty at 40°C and in emergency conditions at high temperatures (200°C for 120 minutes, 300°C for 60 or 120 minutes, 400°C for 120 minutes), according to the “dual purpose” concept defined by the standard.

Available models

Also available:
DUCT-M Standard DUCT-M ATEX DUCT-M ECi

DUCT-M HT

Smoke exhaust ducted axial fan according to EN 12101-3

15 sizes

Ø 300-1600 mm

DUCT-M-HT line is characterized by the use of special components (motor, impeller and casing), different from the standard production, suitable to guarantee the heavy and essential service for which they are designed: to withstand to the high temperatures to guarantee the possibility of salvation for the people involved in a fire.

Max. airflow
150.000 m³/h
Available polarities
2/4/6/8
Available versions
Three-phase/Single-phase
Documentation DUCT-M HT
Technical data sheet pdf · 643,5 KB HT regulation pdf · 82,9 KB View BIM File
Also available:
RING Standard RING ATEX RING ECi

RING HT

Smoke exhaust ring axial fan according to EN 12101-3

13 sizes

Ø 300-1250 mm

RING-HT line is characterized by the use of special components (motor, impeller and casing), different from the standard production, suitable to guarantee the heavy and essential service for which they are designed: to withstand to the high temperatures to guarantee the possibility of salvation for the people involved in a fire.

Max. airflow
100.000 m³/h
Available polarities
2/4/6/8
Available versions
Three-phase/Single-phase
Documentation RING HT
Technical data sheet pdf · 525,8 KB HT regulation pdf · 82,9 KB View BIM File

SMOFIL

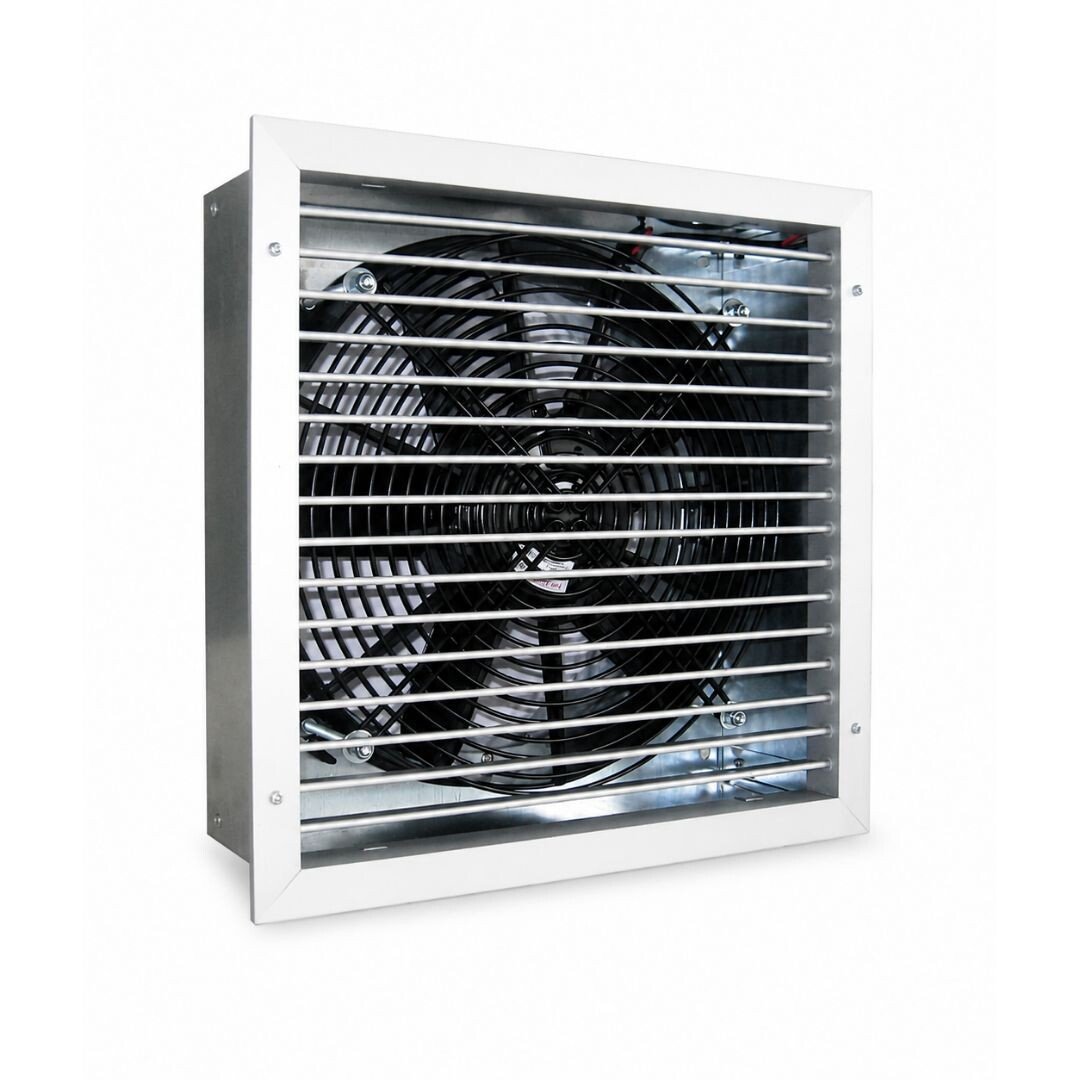

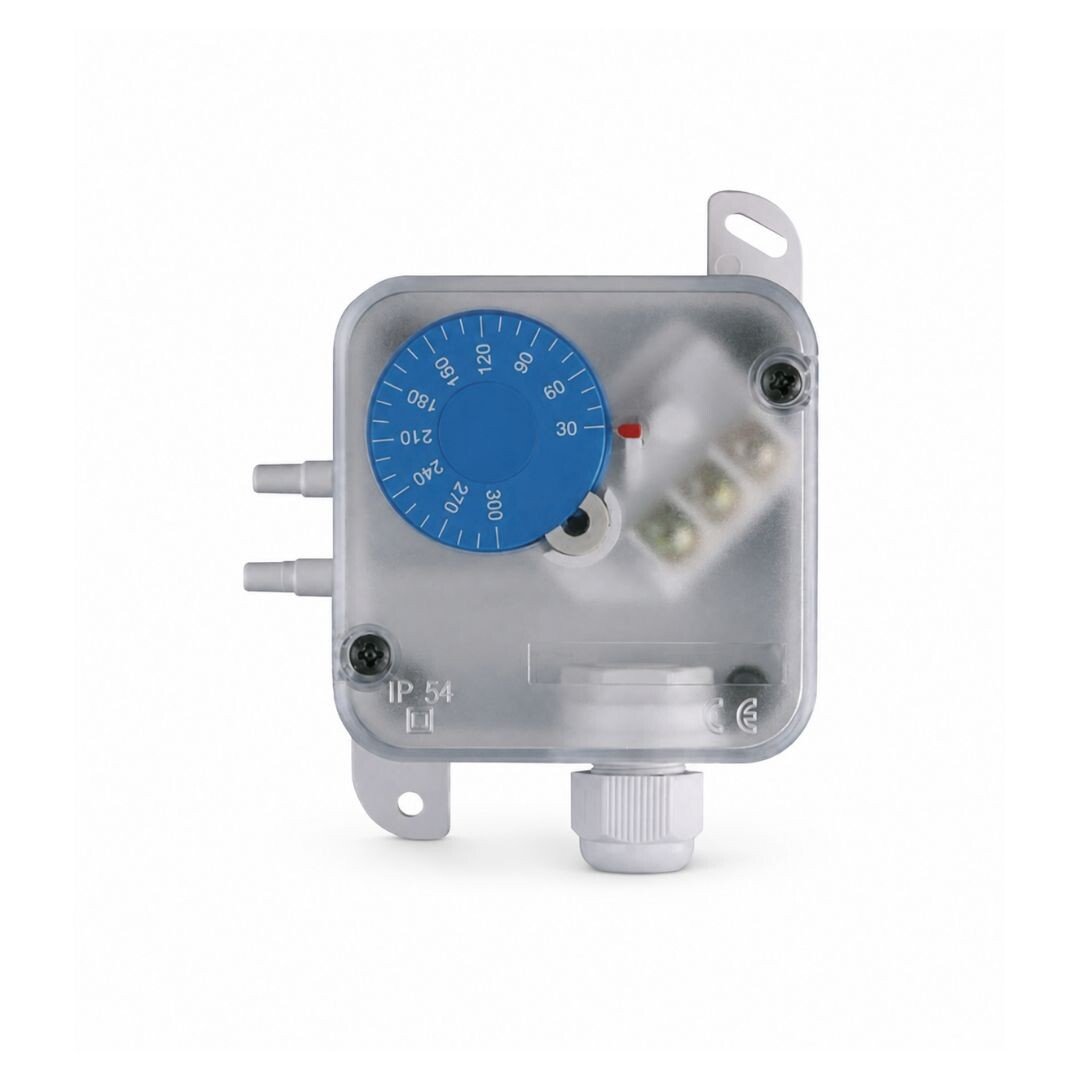

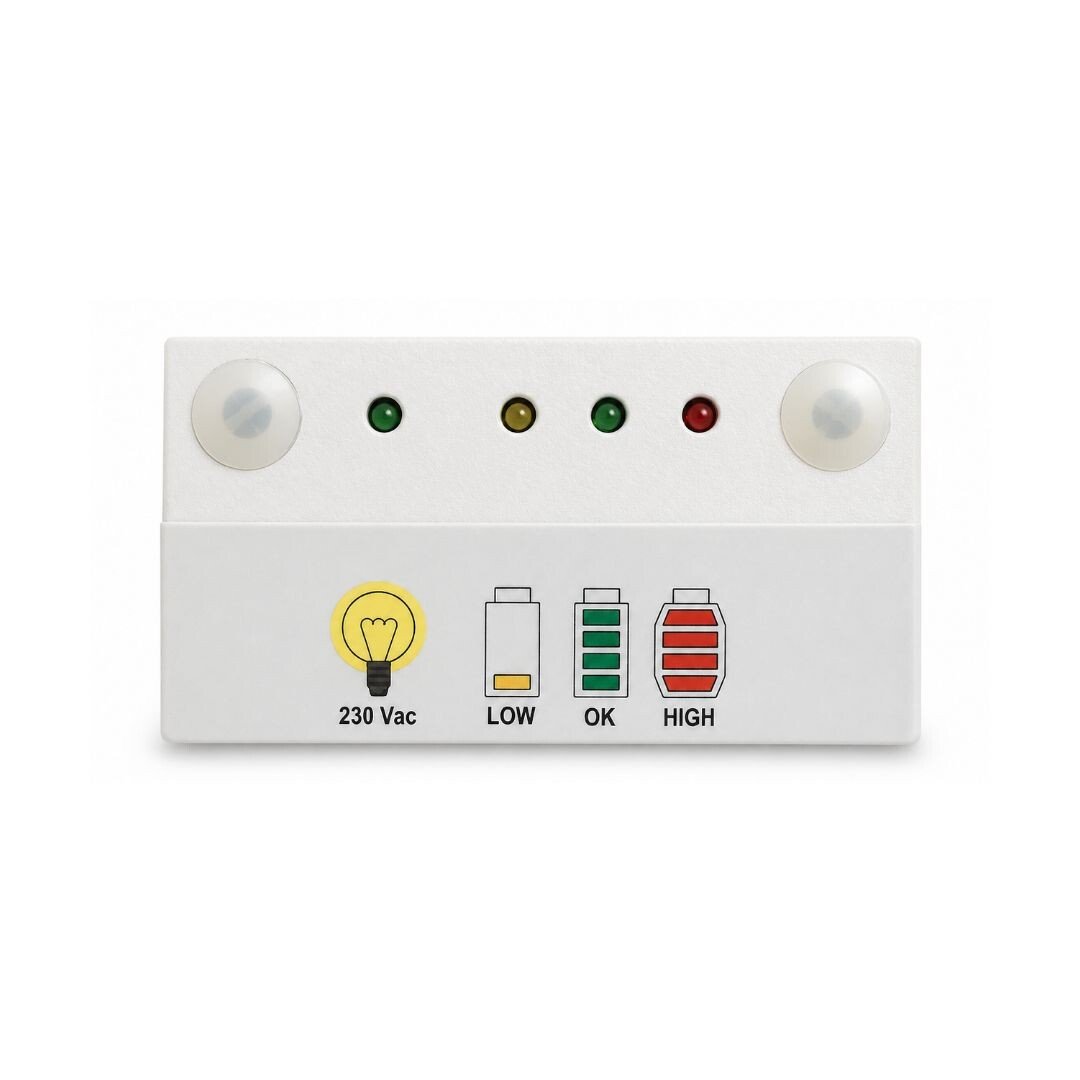

The SMOFIL pressurisation kit

3 sizes

Ø 150-350 mm

The SMOFIL pressurisation kit is a simple and reliable system designed to create positive pressure inside a fire-rated smoke-proof lobby relative to the pressure in the area at risk of fire.

Max. airflow
2.750 m³/h
Available polarities
-
Available versions
-
Documentation SMOFIL
Technical data sheet pdf · 381,8 KB HT regulation pdf · 82,9 KB View BIM File
