Helicoidal and axial fans

Axial flow fans used in applications where the presence of flammable gases requires safe air extraction, preventing explosion risks in compliance with the ATEX Directive 2014/34/EU.

Available models

Also available:
PLATE-M Standard PLATE-M ECi

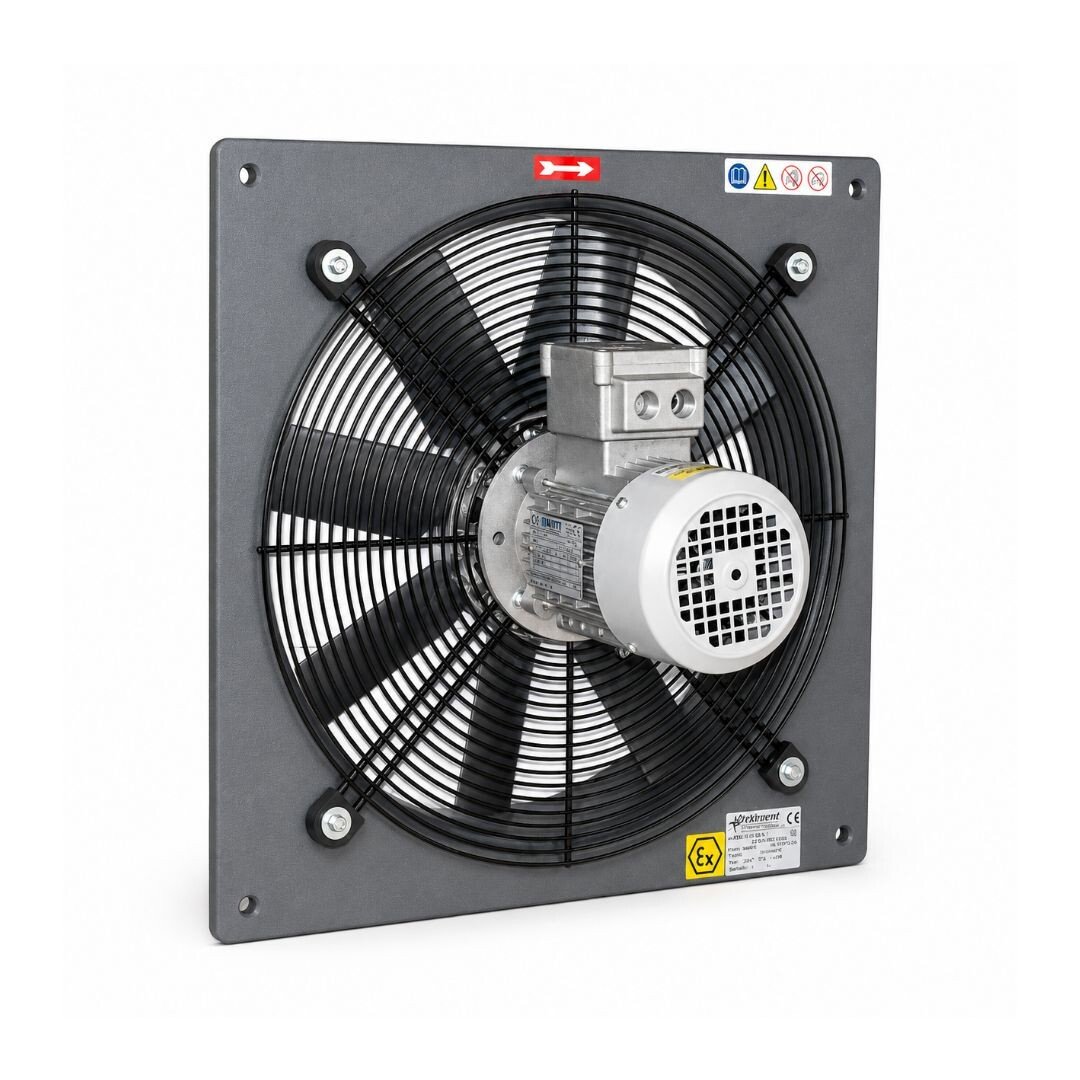

PLATE-M ATEX

Plate axial fan in explosive atmosphere G or D group II category 2 or 3

10 sizes

Ø 250-800 mm

PLATE-M ATEX line is characterized by particular materials and design to avoid as much as possible the risk of explosion, according to the ATEX 2014/34/UE directive. Different constructions are forseen for the fans working in category 2G, 2D o 3G, 3D.

Max. airflow
23.000 m³/h
Available polarities
4/6/8
Available versions
Three-phase/Single-phase
Documentation PLATE-M ATEX
Technical data sheet pdf · 432,9 KB ATEX regulation pdf · 153,0 KB View BIM File
Also available:
RING Standard RING ECi RING HT

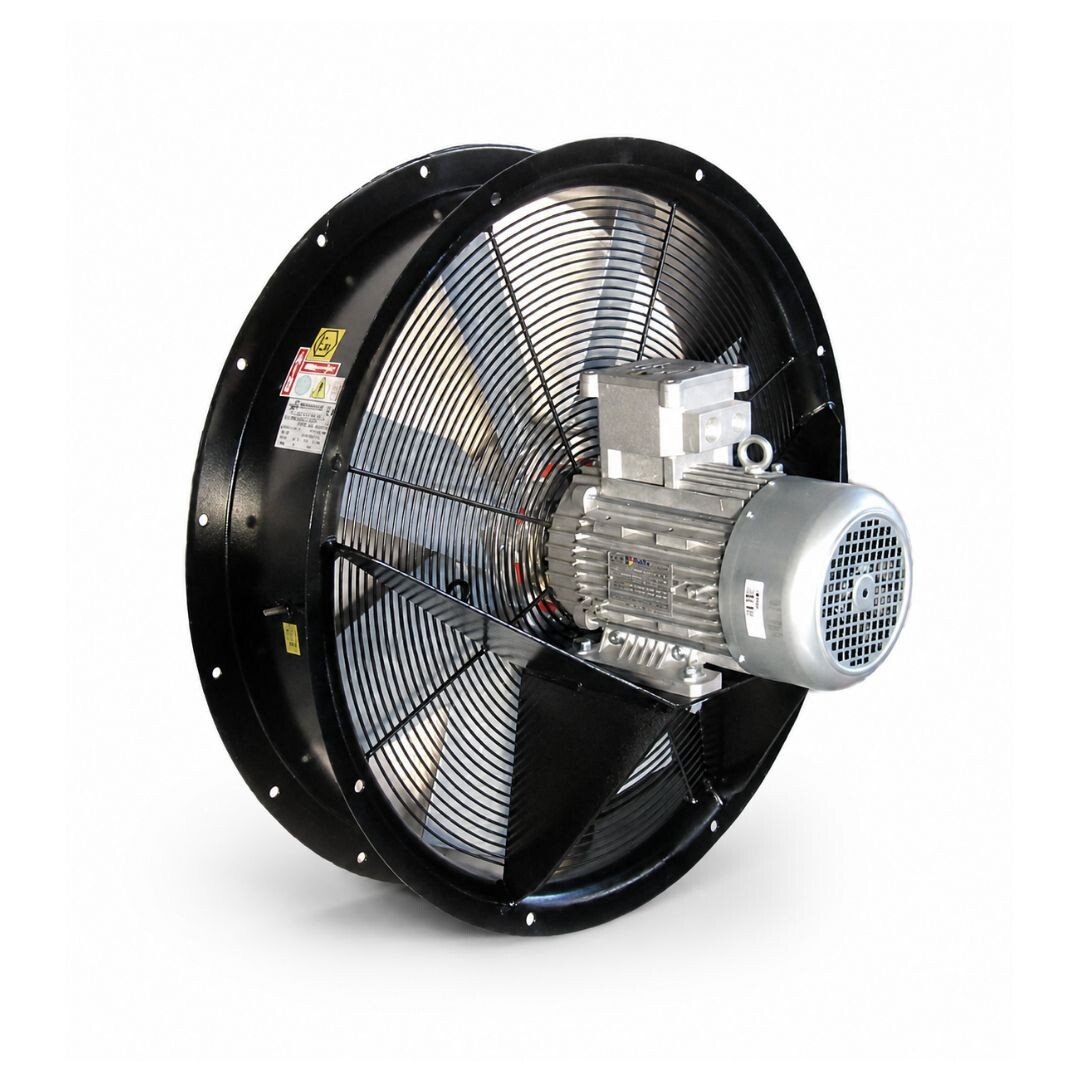

RING ATEX

Ring axial fan in explosive atmosphere G or D group II category 2 or 3

13 sizes

Ø 300-1250 mm

RING ATEX line is characterized by particular materials and design to avoid as much as possible the risk of explosion, according to the ATEX 2014/34/UE directive. Different constructions are foreseen for fans in category 2G, 2D or 3G, 3D.

Max. airflow
100.000 m³/h
Available polarities
2/4/6/8
Available versions
Three-phase/Single-phase
Documentation RING ATEX
Technical data sheet pdf · 408,1 KB ATEX regulation pdf · 153,0 KB View BIM File
Also available:
DUCT-M Standard DUCT-M ECi DUCT-M HT

DUCT-M ATEX

Ducted axial fan for explosive gas or dust atmospheres (G or D), Group II, Category 2 or 3.

15 sizes

Ø 300-1600 mm

The DUCTM ATEX series uses specific materials and design solutions to minimize the risk of explosion, in compliance with the ATEX Directive 2014/34/EU. Different constructions are available depending on the application category: 2G, 2D or 3G, 3D.

Max. airflow
200.000 m³/h
Available polarities
2/4/6/8
Available versions
Three-phase / Single-phase
Documentation DUCT-M ATEX
44_DUCT-M-ATEX.pdf pdf · 518,8 KB 41_NORMATIVA-ATEX_2.pdf pdf · 153,0 KB View BIM File
