Axial and centrifugal roof fans

Axial and centrifugal roof fans used in applications where the presence of flammable gases requires safe air extraction, preventing explosion risks in compliance with the ATEX Directive 2014/34/EU.

Available models

Also available:
ROOF-AM Standard ROOF-AM HT

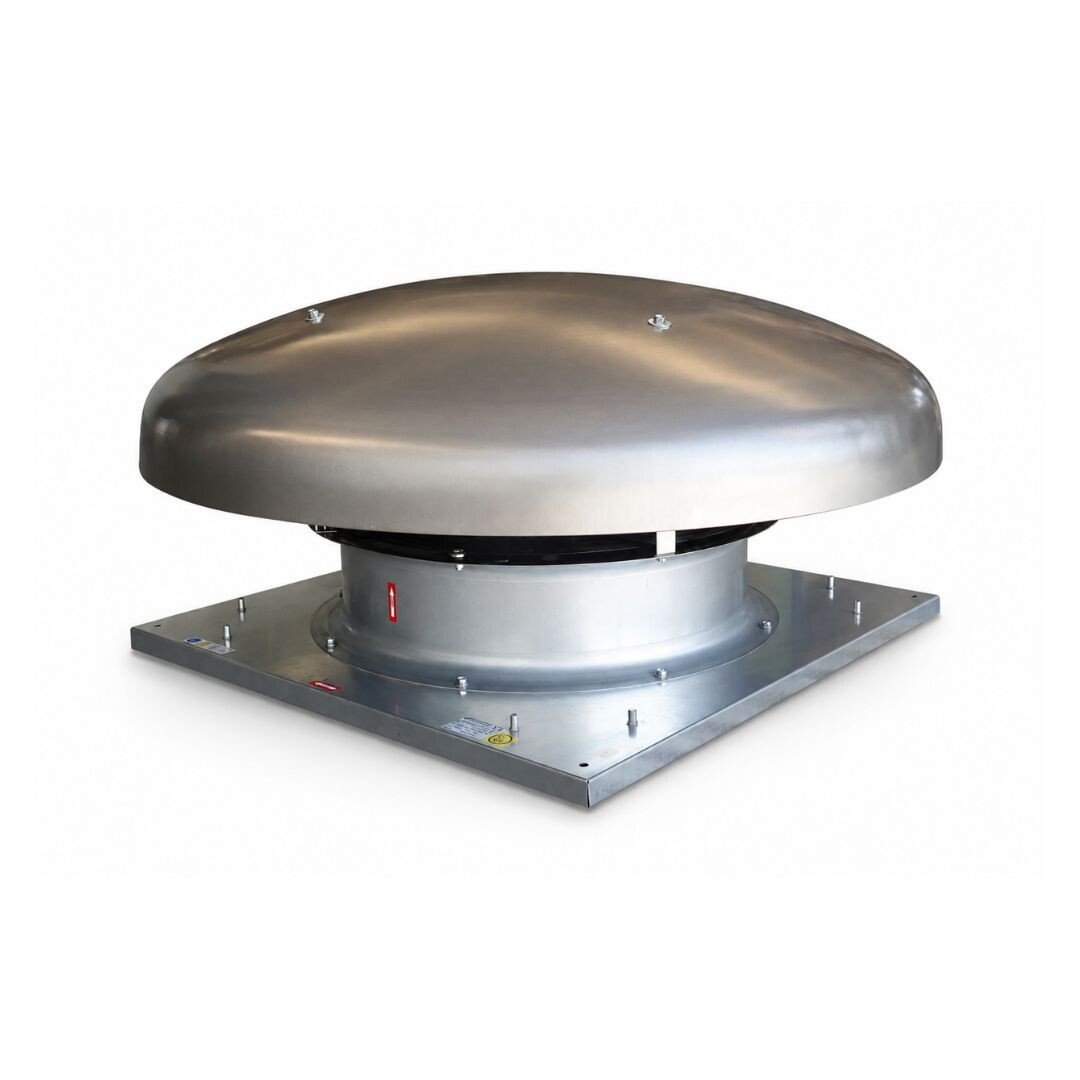

ROOF-AM ATEX

Axial roof fan in explosive atmosphere G or D group II category 2 or 3

7 sizes

Ø 500-1000 mm

ROOF-AM ATEX line is characterized by particular materials and design to avoid as much as possible the risk of explosion, according to the ATEX 2014/34/UE directive.
Different constructions are foreseen for the fans in category 2G, 2D or 3G, 3D.

Max. airflow
26.000 m³/h
Available polarities
4/6/8
Available versions
Three-phase/Single-phase
Documentation ROOF-AM ATEX
Technical data sheet pdf · 408,3 KB ATEX regulation pdf · 153,0 KB View BIM File
Also available:
ROOF-CM Standard ROOF-CM ECi ROOF-CM HT

ROOF-CM ATEX

Centrifugal roof fan in explosive atmosphere G or D group II category 2 or 3

11 sizes

Ø 300-800 mm

ROOF-CM ATEX line is characterized by particular materials and design to avoid as much as possible the risk of explosion, according to ATEX directive ATEX 2014/34/UE. Different constructions are foreseen for fans in category 2G, 2D or 3G, 3D.

Max. airflow
21.500 m³/h
Available polarities
4/6/8
Available versions
Three-phase/Single-phase
Documentation ROOF-CM ATEX
Technical data sheet pdf · 419,9 KB ATEX regulation pdf · 153,0 KB View BIM File
Also available:
PLASTIC ROOF Anti-corrosion

PLASTIC-ROOF ATEX

Plastic roof fans for explosive gas atmospheres (G), Group II, Category 3.

8 sizes

Ø 200-450 mm

The PLASTIC-ROOF ATEX series uses specific materials and design solutions to minimize the risk of explosion, in compliance with the ATEX Directive 2014/34/EU.

Max. airflow
6.000 m³/h
Available polarities
2/4/6
Available versions
Three-phase / Single-phase
Documentation PLASTIC-ROOF ATEX
35_PLASTIC-ROOF.pdf pdf · 515,8 KB 41_NORMATIVA-ATEX_5.pdf pdf · 153,0 KB View BIM File
